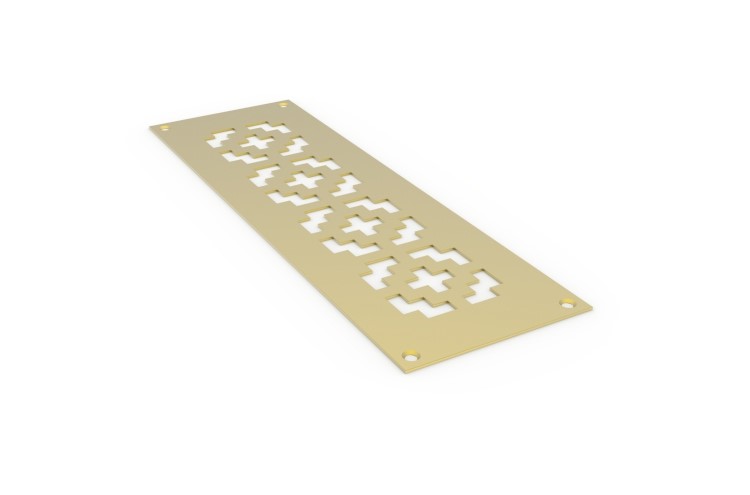

Pixel Ventilator



The Pixel Vent is part of our Heavy Duty range , adding a classy finish to your ventilation needs.

Pixel Ventilator made from high quality 1.2 millimetre material. Other thicknesses available on request .
Special sizes available.

Suitable For
Floors, doors, walls and ceilings.

Pixel
Made In Uk Logo

Description



Part Number Size (Millimetres) Size (Inches) Air Space (mm² ) AB/SB/IBMA SSS/PSS PB SAA
HD5894 152 x 76mm 6” x 3” 3563 POA POA POA POA
HD5902 152 x 152mm 6” x 6” 5080 POA POA POA POA
HD5895 229 x 76mm 9” x 3” 5599 POA POA POA POA
HD5896 229 x 152mm 9” x 6” 11198 POA POA POA POA
HD5897 229 x 229mm 9” x 9” 7126 POA POA POA POA
HD5898 305 x 76mm 12” x 3” 14252 POA POA POA POA
HD5899 305 x 152mm 12” x 6” 1090 POA POA POA POA
HD5901 305 x 229mm 12” x 9” 22905 POA POA POA POA
HD5900 305 x 305mm 12” x 12” 30540 POA POA POA POA

Additional information

Finish

SSS- Satin Stainless Steel, PSS- Polished Stainless Steel, PB- Polished Brass, SAA- Anodised Aluminium
Size

152 x 152mm, 152 x 76mm, 229 x 152mm, 229 x 229mm, 229 x 76mm, 305 x 152mm, 305 x 229mm, 305 x 305mm, 305 x 76mm
